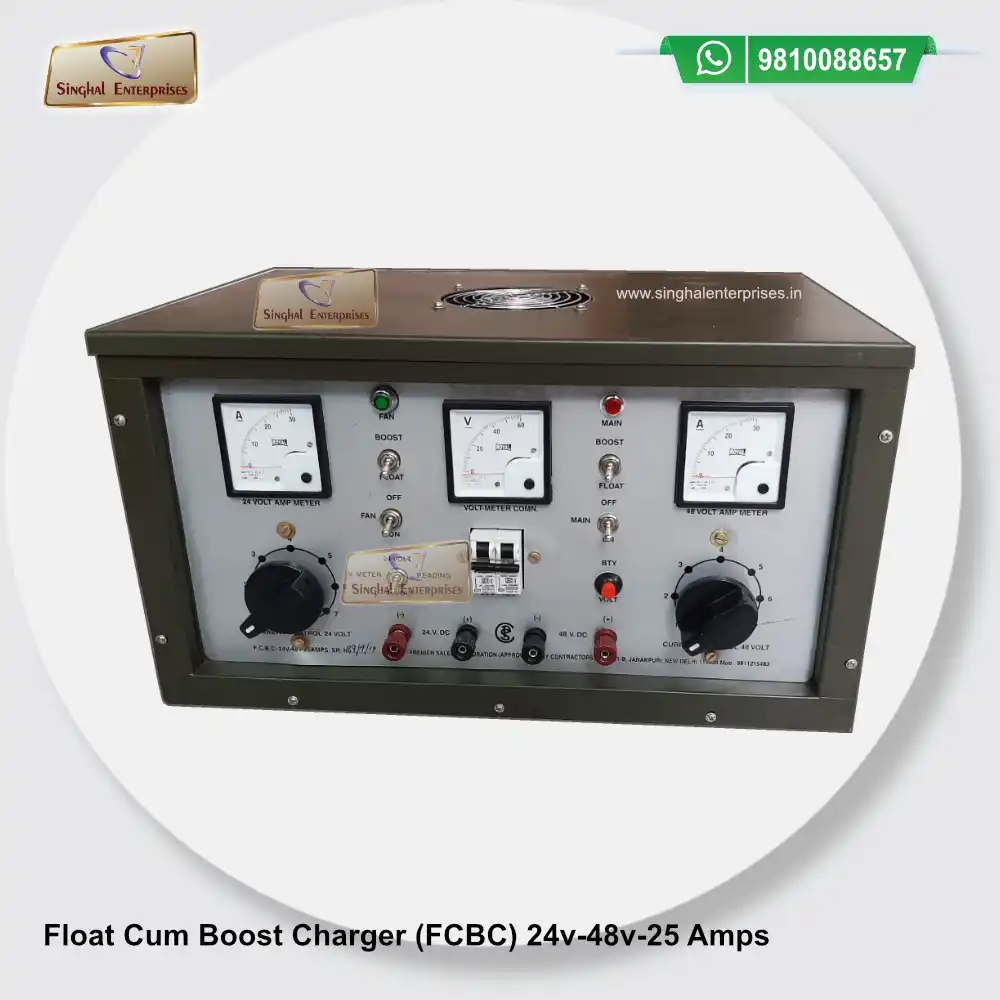

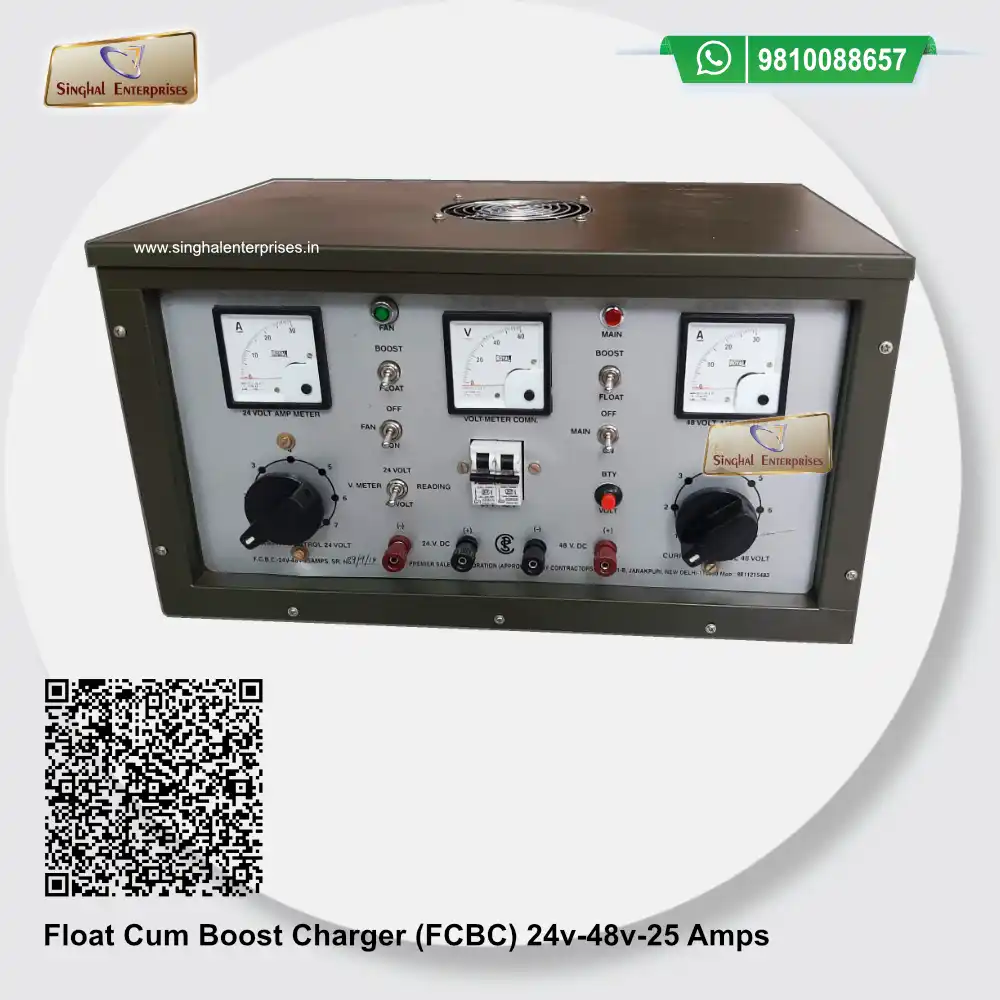

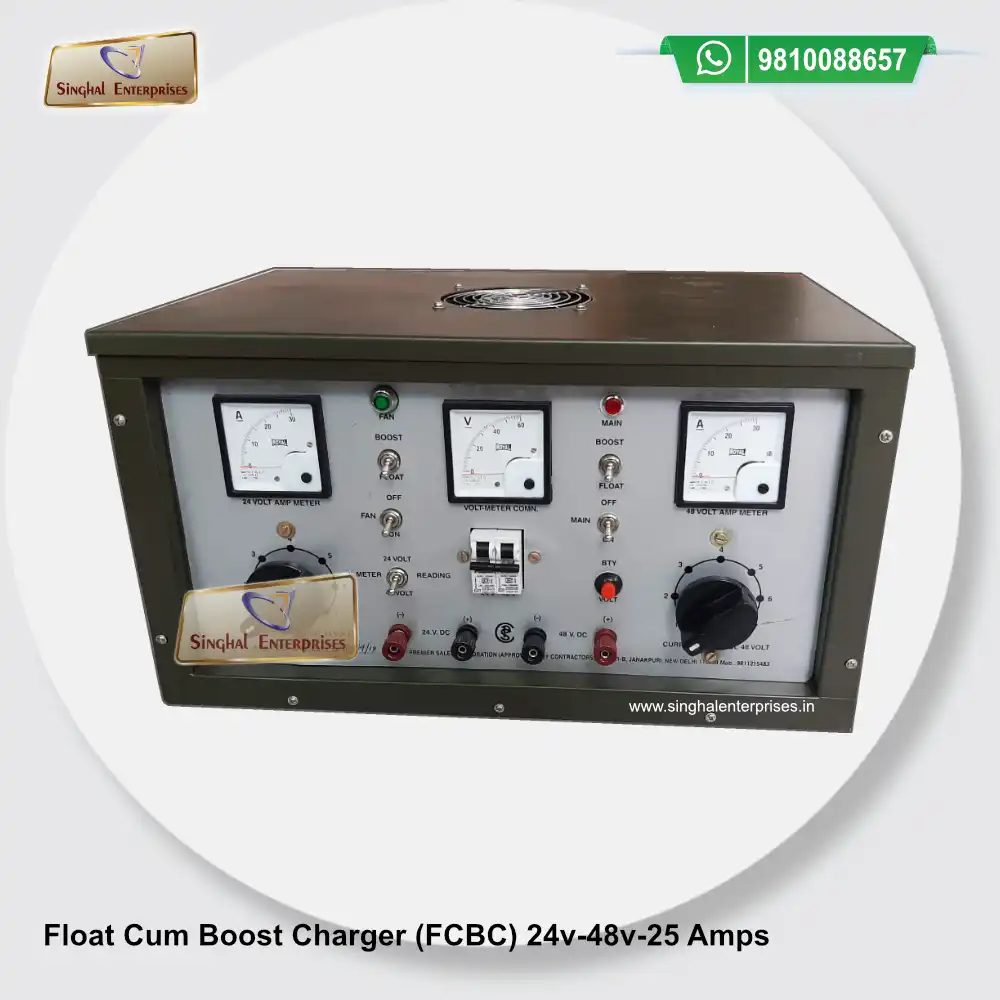

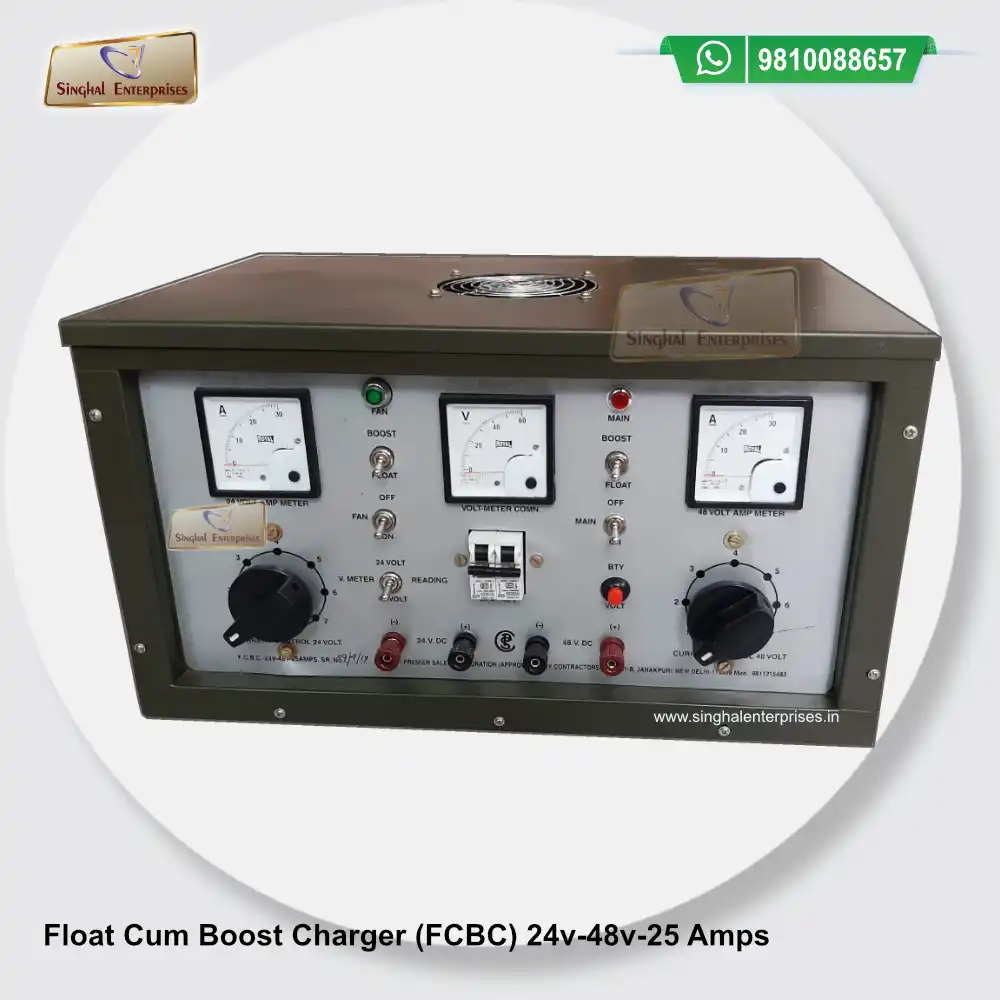

We are one of the prominent Supplier of Float Cum Boost Charger (FCBC) 24v- 48v-25 Amps (Premier), which is highly appreciated and demanded in the market. To Manufacture entire range, our professionals keep their close eye on each and every step of manufacturing and packaging to cater utmost quality product at customers end.
.
1. INPUT
a. Voltage 220V AC, Single Phase Active, Neutral Earth.
b. Frequency 40 to 65 Hz.c Current 11A RMS at 220V AC, sinusoidal waveform 7.0 RMS at 220V AC.
d. Power factor 0.9 at Full Load, Sinusoidal Wave from TDH 8 at Full Load complies with IEC 555-2.
e. Efficiency 90 Typical from 50 to 100 Output at Nominal Input Voltage.
2. OUTPUT
a. Maximum Current Capacity 25 Amps.
b. Allowable Voltage Rating 48 Volts.
c. Allowable Voltage Rating 24 Volts.
d. Input AC Voltage Specification 220 Volts.
e. Current Setting 8 Steps.
f. Nos. of Bank Capacity 8 Bank 48 Volts under Float Mode.g Nos. of Bank Capacity 16 Bank 24 Volts under Float Mode.
3. ENVIRONMENTAL
a. Cooling Natural Convection Cooling, Operating Range 0C to 50C.
b. Temperature Centigrade.
c. Humidity 0 to 90.
4. Mechanically
a. Dimensions 51 x 27.5 x 37.5 cm.
b. Weight 25 kg. (Approx)
